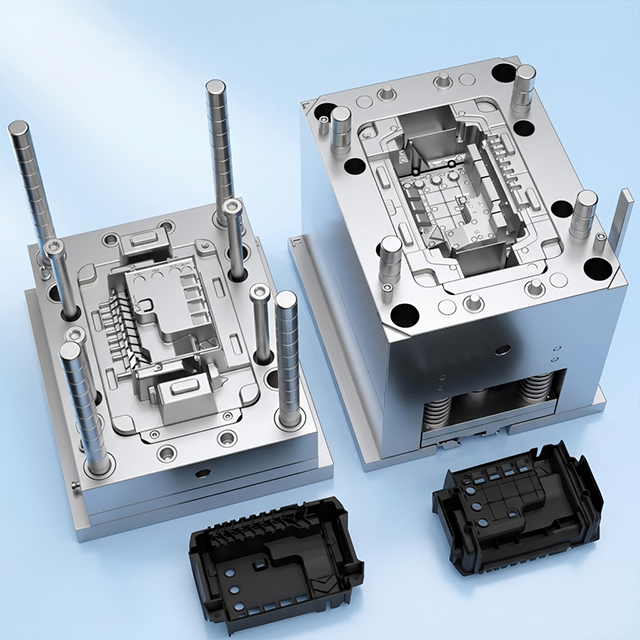

Connector Housing Small Multi-Slider Mold

As the core component for mass production of electronic connectors, injection molds directly determine the dimensional accuracy, assembly performance and production yield of Type-C and USB connector housings. This small multi-slider mold is specially developed for molding complex-structured connector housings, widely used in consumer electronics, data transmission equipment and peripheral accessories.

The mold adopts a multi-slider design to solve the forming challenges of undercuts, internal buckles and complex side-wall structures on the connector housing, ensuring smooth demolding and consistent product quality.

• Multi-slider precision forming: The multi-slider mechanism ensures precise forming of complex undercuts and side features, meeting the assembly requirements of Type-C/USB connectors

• High-precision positioning: The mold core and cavity are made of high-quality mold steel, with precision machining to guarantee consistent product dimensions and stable mass production

• Long service life: High-hardness mold steel with heat treatment and surface treatment, resistant to wear and deformation, effectively reducing maintenance costs

• Excellent molding stability: Optimized cooling and ejection system, minimizing warpage, shrinkage and deformation, ensuring high yield in long-term production

• Wide adaptability: Suitable for injection molding of engineering plastics such as PA, PBT, LCP, PC+ABS, meeting different application scenarios of electronic connectors

Item Specification
