Hydraulic Core-Pulling Mold

Cooling system plastic pipe fittings and intake pipe housings are core components of automotive and industrial fluid systems, requiring excellent dimensional accuracy, pressure resistance, heat resistance and airtightness. Their complex internal structures (long flow channels, deep undercuts and side interfaces) cannot be demolded with conventional molds, making hydraulic core-pulling molds the ideal solution for mass production.

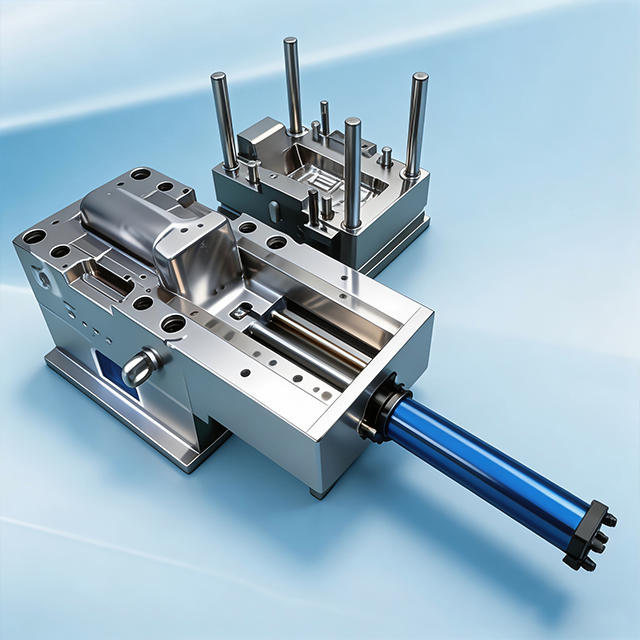

This mold is specially designed for forming cooling system pipe fittings and intake pipe housings. It adopts a high-stroke hydraulic core-pulling mechanism, combined with an optimized cooling and ejection system, to ensure stable production of high-quality products.

• Hydraulic long-stroke core-pulling: Equipped with a high-precision hydraulic cylinder, it can complete long-distance core pulling and demolding, perfectly solving the forming challenge of long flow channels and deep cavities

•  High-precision interface forming: Precision-machined core and cavity ensure tight dimensional tolerances of pipe fitting interfaces, meeting the airtightness and assembly requirements of cooling systems

• High-temperature and pressure-resistant structure: Made of high-quality mold steel with heat treatment, it can withstand long-term high-pressure injection molding of reinforced engineering plastics such as PA66+GF and PPS

• Optimized cooling system: Built-in uniform cooling circuit effectively controls molding temperature, reduces product warpage, shrinkage and deformation, and improves production efficiency

• Wide adaptability: Suitable for various cooling system components such as water pipe joints, intake pipe housings, and fluid connectors, meeting different application scenarios in automotive and industrial fields

Item Specification
