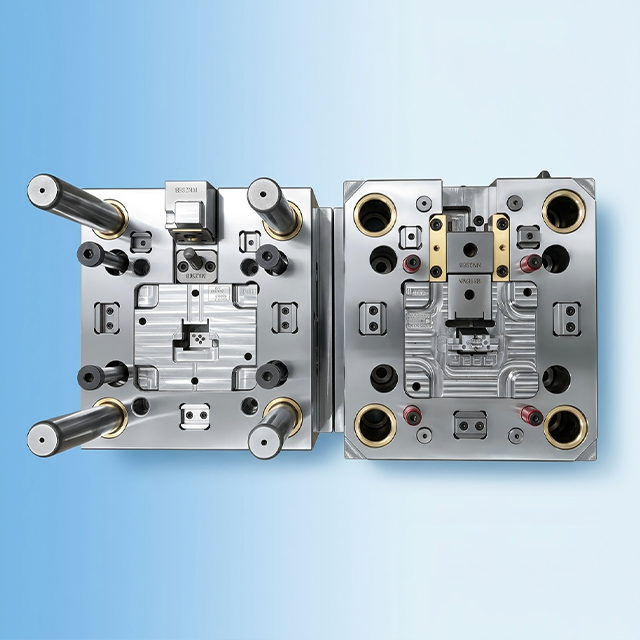

As a core carrier for mass production of electronic components, precision injection molds directly determine the quality, dimensional accuracy and production efficiency of connectors and terminal bases. This small precision slider mold is specially designed for molding various connectors and terminal base plastic parts, widely used in consumer electronics, automotive wiring harnesses, home appliances and other fields.
This mold adopts a high-precision slider structure, which solves the forming problem of undercut and complex structure of the product. It has excellent performance in the following aspects:
High positioning accuracy: the slider and core parts are precisely matched to ensure consistent oduct size and stable batch production
Long service life: made of high-quality mold steel, with high hardness and wear resistance, effectively reducing maintenance frequency
Smooth demolding: optimized slider and ejection mechanism, no sticking or burrs, improving production yield
Strong adaptability: suitable for injection molding of various engineering plastics such as PA, PBT, LCP, meeting different application scenarios
Item Specification
Mold Type | Small Precision Slider Mold |
Applicable Products | Connector / Terminal Base |
Mold Structure | Two-plate / Slider Mechanism |
Mold Material | High-grade Mold Steel (e.g. S136H / 2344) |
Cavity Number | Customizable (1×1 / 1×2 / Multi-cavity) |
Applicable Material | PA, PBT, LCP, ABS, PC, etc. |
Mold Base | Standard (LKM / HASCO / DME) |
Mold Size | Customizable (Based on product design) |
Mold Weight | Customizable (Based on product design) |
Mold Life | ≥500,000 shots (Depends on material & maintenance) |
Surface Treatment | Polishing / Texture (Customizable) |
Tolerance | ±0.01mm (Core & Cavity) |
Certification | ISO 9001 |
